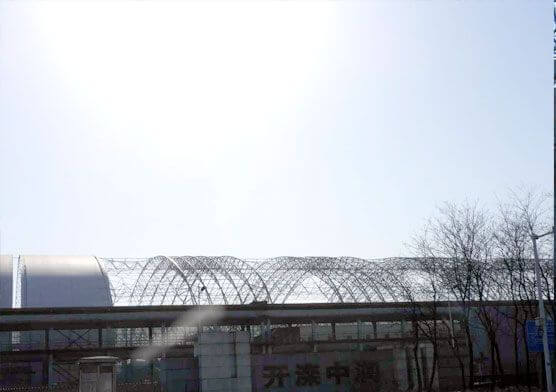

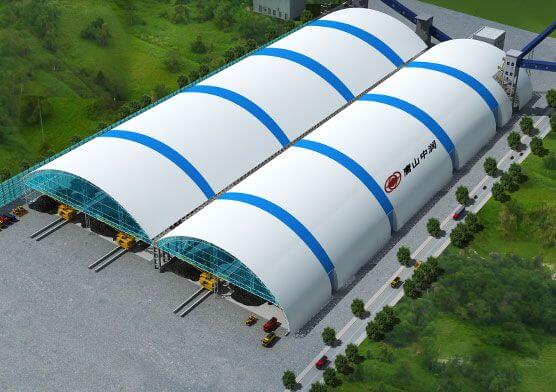

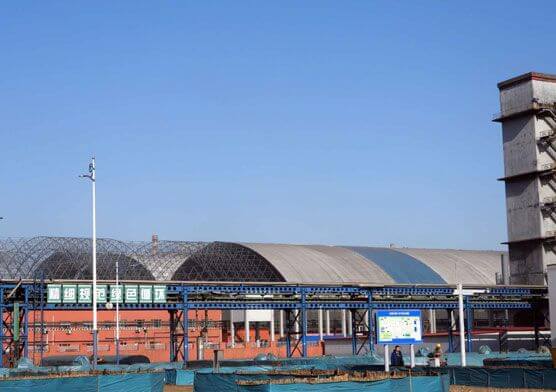

1、This project is 356 meters long, 225.6 meters wide, and has a construction area of about 80,313.6 square meters.

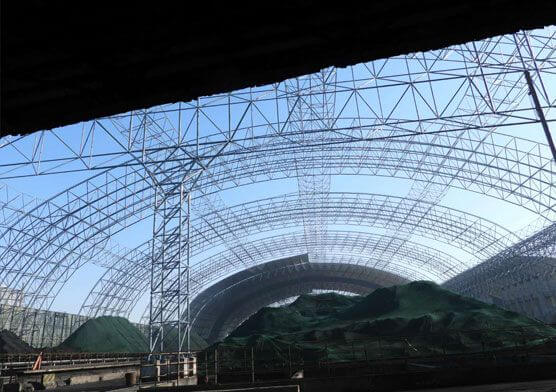

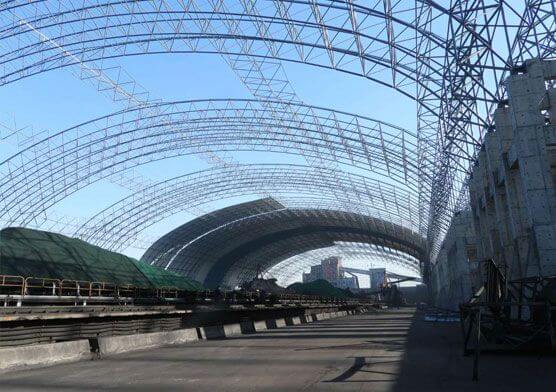

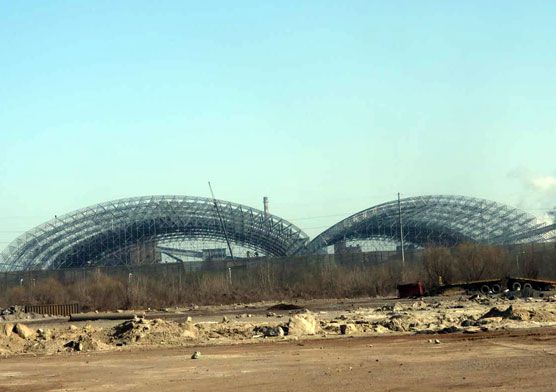

2、It is constructed in a four-space frame, the main structure is a space frame, and the top is covered with film. The span of the space frame is 95 meters and 118 meters.
3、The space frame is evacuated at intervals in the length direction, the width of the evacuated part is 20 meters, and there are 76 membrane cloth installation units in total. 1600 square meters range.
This project is 356 meters long, 225.6 meters wide, and has a construction area of about 80,313.6 square meters. It is constructed in a four-space frame, the main structure is a space frame, and the top is covered with film. The span of the space frame is 95 meters and 118 meters. The space frame is evacuated at intervals in the length direction, the width of the evacuated part is 20 meters, and there are 76 membrane cloth installation units in total 1600 square meters range.

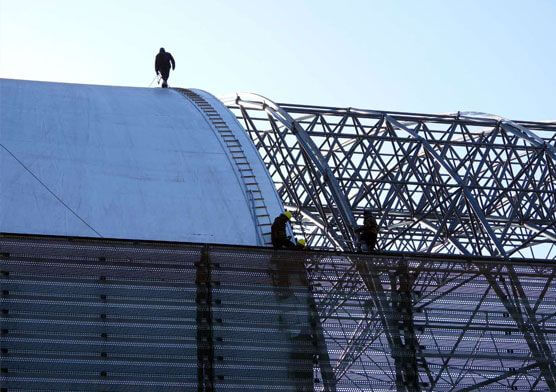

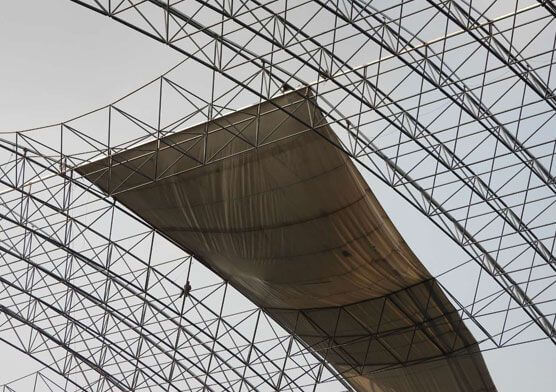

The difficulty of membrane structure coal shed is the installation of membrane cloth. Because the project site is near the sea, the height of the highest point of the space is about 42 meters, the wind on the construction site is relatively large, and the area and weight of a single membrane cloth are also very large, so the installation of the membrane cloth is difficult.
|
Application: Membrane Structure Coal Shed; |
|
Main Support Structure： Space Frame; |
|
Top Cover： Membrane Structure; |
| Node Type: Bolt Ball; |
|
Design Standard: NSCP; |
|
length:356m; |
|
Width:225.6m; |
|
Span：95m、118m; |
|
Certificates: ISO, CE, SGS; |
|
Steel Material: Q235B/Q355B,45#,40Cr; |
|
Surface Treatment: Hot-dip galvanized ; |
|
Roof Panel: Color steel sheet. |
|
Shipping: 60 days against receipt of down payment |
|
Installation: Supply supervision |
|
Packaging Details: Use a packing rack for large steel components, small components are put into wooden cases. |
|
Design Life: 50 years |
