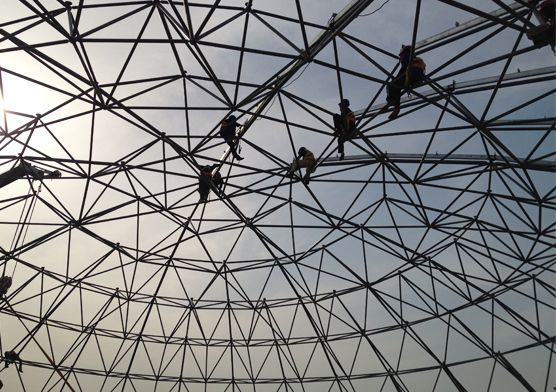

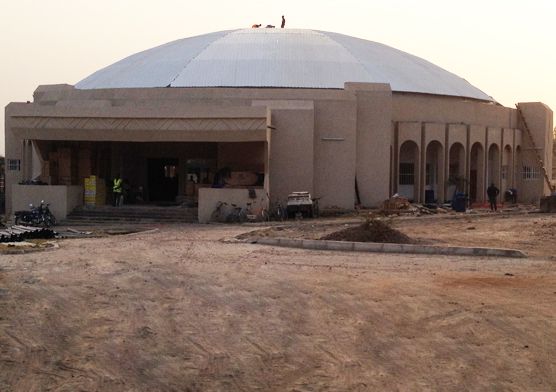

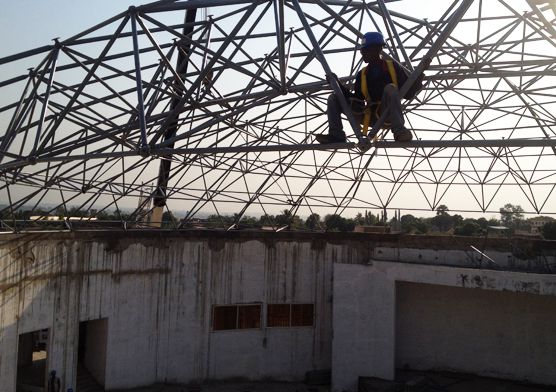

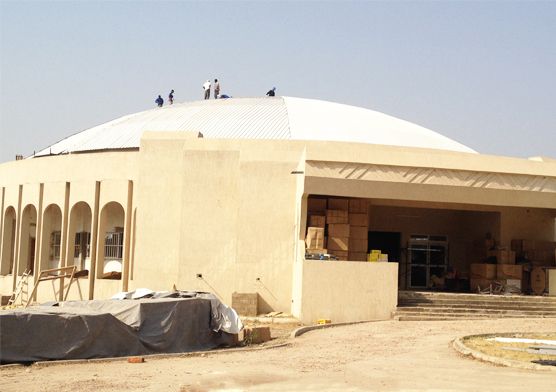

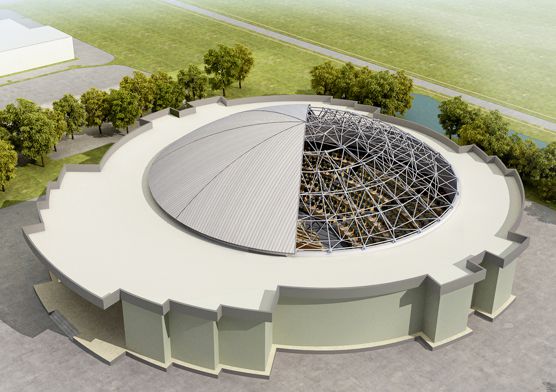

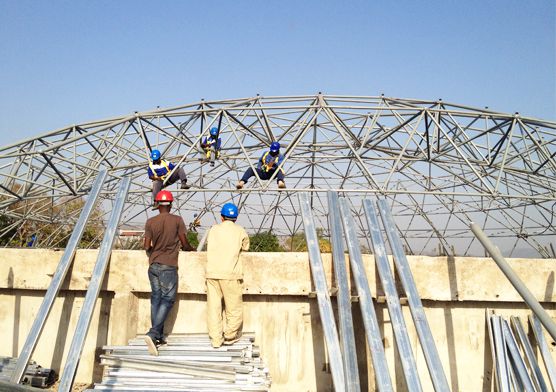

The conference hall roof project is located in Lome, Togo, which was finished in 2014. The roof adopts dome space frame structure which is a truss-like, lightweight rigid structure constructed from interlocking struts in a geometric pattern. The roof panel adopts the sandwich panel.
|
Structure Type: Light Steel |
|
Application: Conference Hall Roof |
|
Design Standard: ASCE |
|
Span: 34.4m |
|
Height：5.806m |
|
Foundation Height：4.5m |
|
Wind Zone: 31.2m/s |
|
Seismic Zone: Ⅰ |
|
Certificates: ISO, CE, SGS |
|
Steel Material: Q235B,High strength bolt:40Cr,Bolt ball:40# |
|
Surface Treatment: Epoxy zinc-rich primer;Micaceous iron epoxy medium paint;PU finish coat |
|
Roof panel: Purlin + colored bottom plate + waterproof breathable film + rock wool + Z purlin + Aluminum foil + colored top plate |
|
Shipping: 45 working days against receipt of down payment |
|
Installation: Supervision by LF engineers |
|
Packing Details: Use packing rack for large steel components, small components are putted into wooden case. |
|
Design life: 50 years |
