Prefab Steel Structure Glass Atrium Skylight Dome Roof Design

Product description

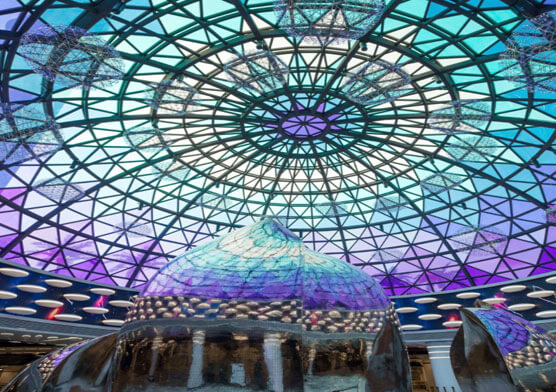

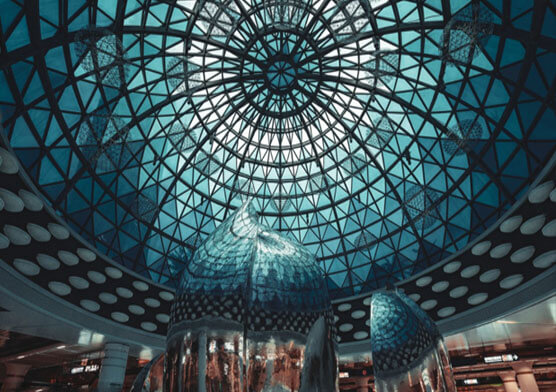

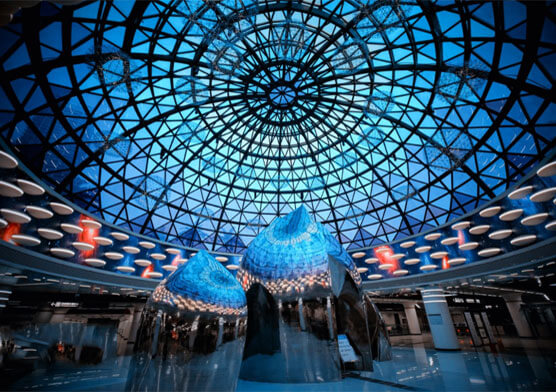

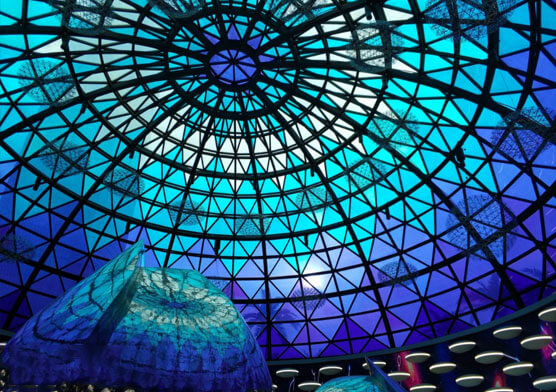

1) The steel structure glass skylight dome is 23 meters in diameter and 14 meters high;

2) The glass skylight dome roof is composed of 954 pieces of tempered glass, and each piece of glass is 8 mm thick, main frame adopts: a steel structure

3) The glass atrium roof is constructed with 3 layers of hollow laminated coated glass technology, and the unfolded area of the dome glass is 650 square meters;

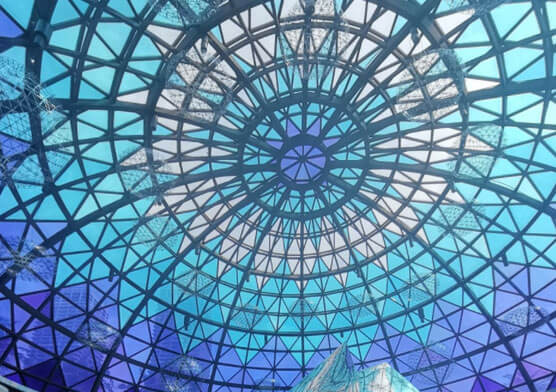

4)The glass dome is composed of six shades of blue and purple glass from light to dark from top to bottom, like a gradual blooming lotus flower.

leave message

lnquiry online

Technical Advantages
Application
Related Products

Technical Advantages

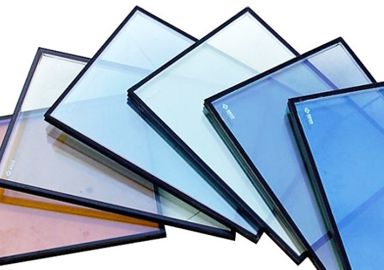

（1）The glass technology used in this dome skylight project is currently the leading technology in the country. It adopts hollow lamination technology. In order to ensure the firmness and beauty of the dome, they filled each layer of glass with argon gas and coated a layer of anti-ultraviolet film, not only It can play the role of heat insulation and can also prevent ultraviolet rays.

（2）The load-bearing capacity of the dome glass roof reaches 10 adults per square meter, which means that 6,500 people stand at the same time, and the dome will not collapse.
