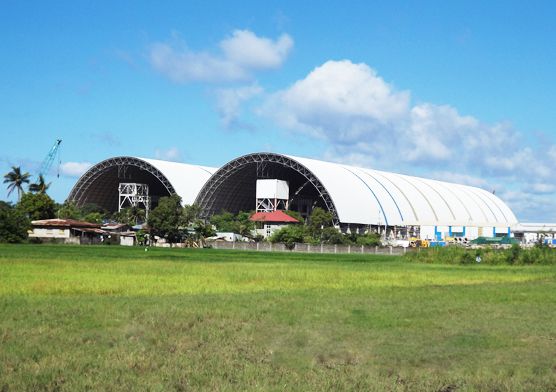

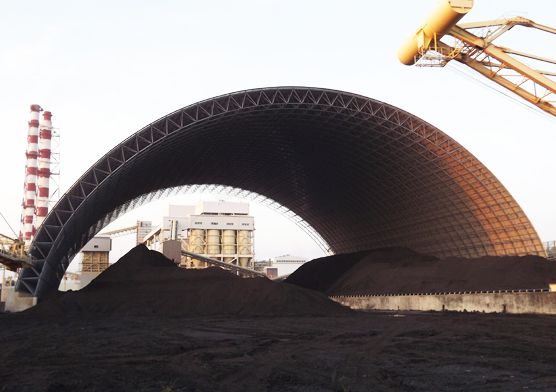

This project is about the space frame roofing of coal storage for the Power Plant in Philippines.The construction structure is in barrel shell shape, full-width is 64.572m，full-length is 175m, height is 25.957m，space frame span is 61m ,foundation height is 4.5mm and construction area is 11300.1m2.

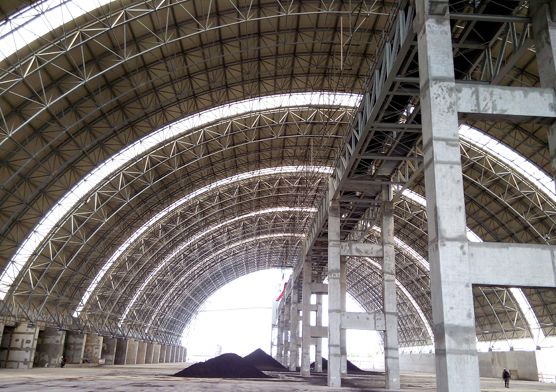

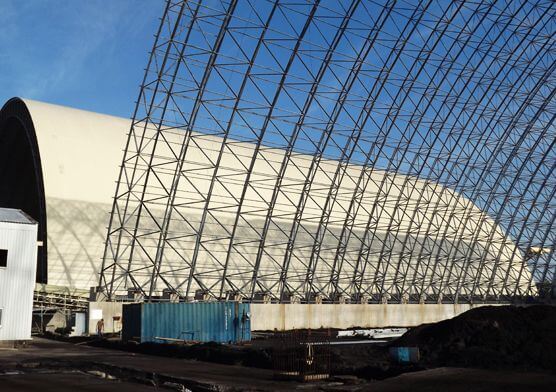

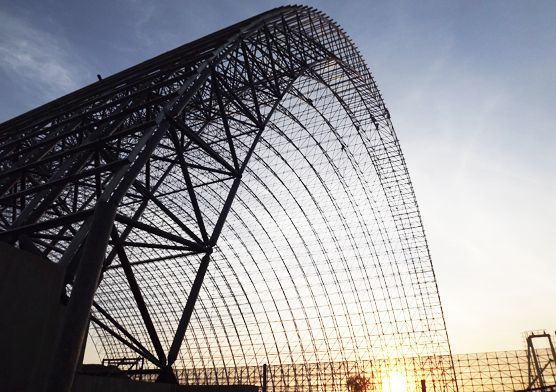

The space frame is in square pyramid bolt ball node structure and barrel shell shape, with the bearing way of bottom supporting, and total 52 column points. The bottom foundation of the space frame is in reinforced concrete structure , the dimension of upper chord grid is about 3.5mx3.546m，and bottom is about 3.5mx3.293m，thickness of the space frame is 2.5m.

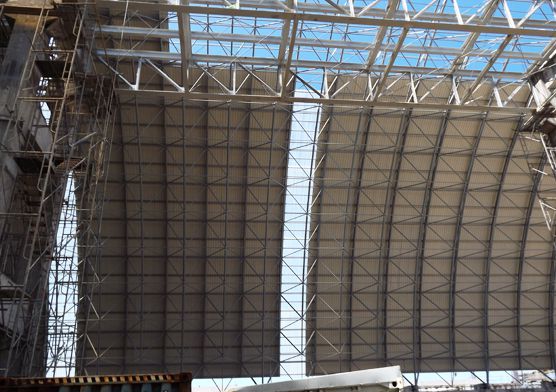

We apply cold pressed C steel on the roof purlin, and the roof panel is color painted with pressed steel plate.
|
Structure Type: Light steel space frame |
|
Application: Coal storage |
|
Design Standard: NSCP |
|
Span: 61m |
|
Height: 25.957m |
|
Wind Zone: 250kph |
|
Seismic Zone: 4(Z=0.4) |
|
Certificates: ISO, CE, SGS |
|
Steel Material: Q235B/Q355B，45#，40Cr |
|
Surface Treatment: Anti-rust treatment with epoxy zinc rich primer and PU finish. Roof color steel sheet. |
|
Roof panel: Color steel sheet. |
|
Shipping: Shipped in 60days after the payment |
|
Installation: Supply supervision |
|
Packaging Details: Use packing rack for large steel components, small components are putted into wooden case. |
|
Design life: 50 years |
