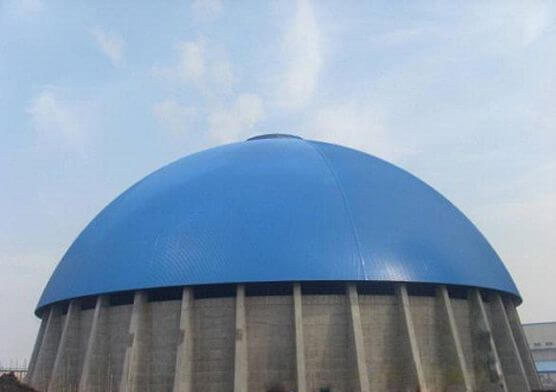

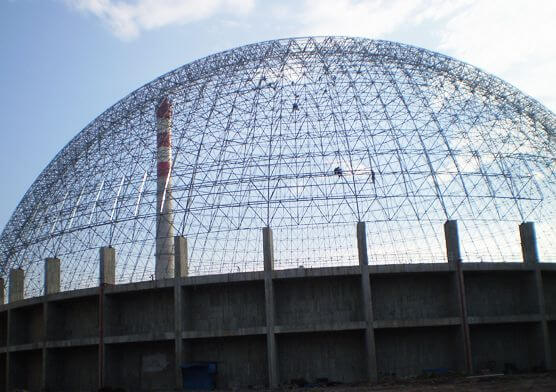

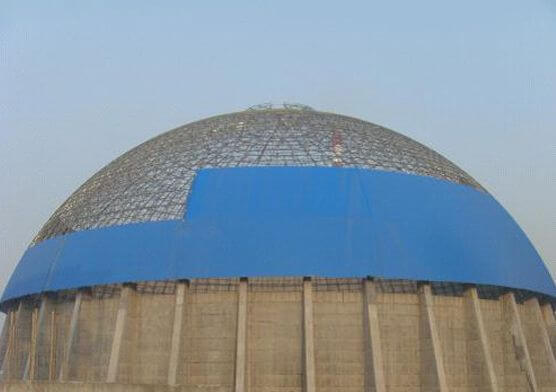

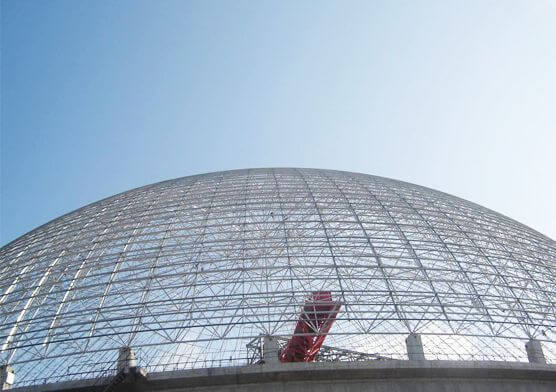

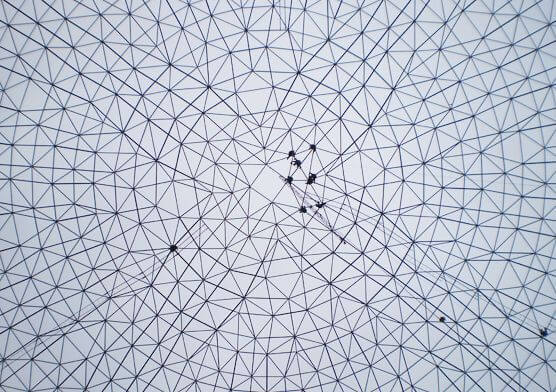

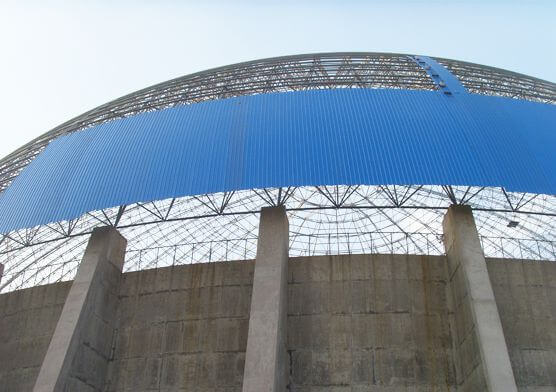

The Nine Dragons Paper coal storage roof is in method of two layers dome space frame structure with bolt ball connection, and the span is 102.8m. The height of space frame is 58.29m, foundation height is 19.25m, the surface of space frame is plated with epoxy zinc rich primer and PU covered, the roof adopts colored steel panel with SMP covered, natural lighting use FRP plate.
The closed dome pro-environment coal storage by LF design can effectively avoid the dust produced in the process of loading and unloading, transportation and storage, which can protect the surrounding environment well and further improve the staff’s working environment.
|
Structure Type: Light steel |
|
Application: Coal storage shed |
|
Designed Capacity：110000T |
|
Span：102.8m (Diameter) |
|
Height：58.29m |
|
Foundation Height ：19.25m |
|
Wind load：0.50KN/m2 |
|
Seismic load：7 Dgree |
|
Seismic acceleration：0.10g |
|
Certificates: ISO, CE, SGS |
|
Steel Material: Q355B |
|
Surface Treatment：Epoxy zinc rich primer and PU finish |
|
Roof panel: Color steel sheet (SMP finish) |
|
Natural lighting roof：FRP |
|
Shipping: 45 working days after designing drawings are confirmed with signature |
|
Installation: Supply supervision |
|
Packaging Details: Use packing rack for large steel components, small components are putted into wooden case. |
|
Design life: 50 years |
