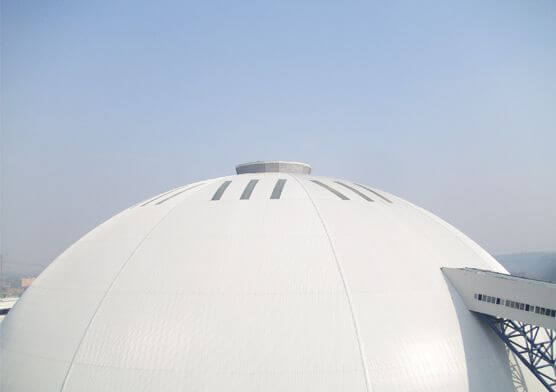

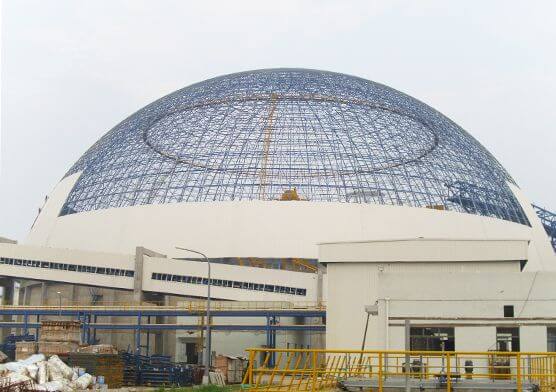

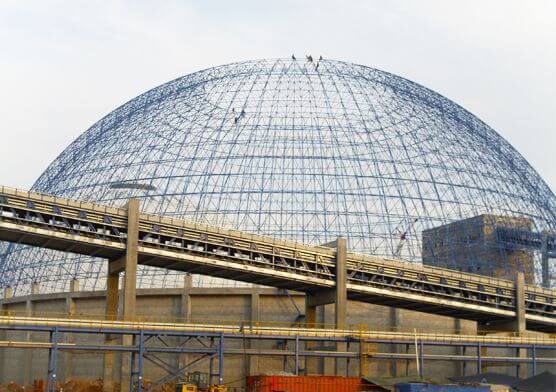

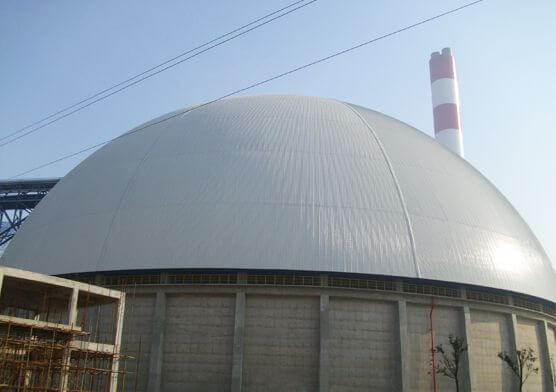

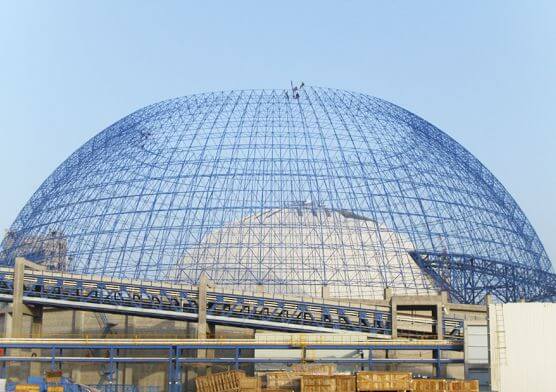

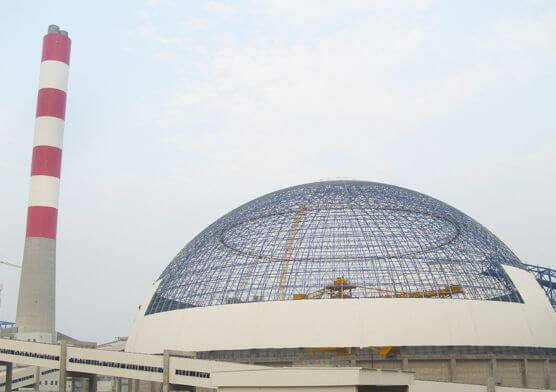

2×600MW power plant, 50 years of design life.
Span-121.40m (Diameter). Height-75.292m, foundation height-21.90m.
Wind load-0.45KN/m2 ,Snow load-0.45KN/m2 . Seismic acceleration-0.118g.
Space frame’s main components by hot-dip galvanization (or zinc
spray).
Roof-color steel sheet (PVDF finish), Natural lighting roof-FRP.
Designed Capacity：160000T
LF is professional at dome-shaped structures, it has several special advantages as following:
1. Design: LF is equipped with the most advanced design software and system, and has professional technical engineers.
2. Fabrication: LF has excellent quality control system of fabrication, which can control the fabrication effectively to meet clients’ requirement.
3. Installation: Engineers of LF are all experts in the field of steel structure and spatial structure with many years of construction experience.
What needs to be emphasized ,LF is expert of the construction in long span(D>100m) which is replacing traditional H type steel structure with absolute advantages of lower cost, more beautiful appearance and safe structure.
|
Structure Type: Light steel |
|
Application: Power plant coal storage shed |
|
Designed Capacity：160000T |
|
Span：121.40m (Diameter) |
|
Height：75.292m |
|
Foundation height：21.90m |
|
Wind Zone: 0.45KN/m2 |
|
Snow load：0.45KN/m2 |
|
Seismic acceleration：0.118g |
|
Certificates: ISO, CE, SGS |
|
Steel Material: Q355B |
|
Surface Treatment: Hot dip galvanizing and paint |
|
Roof panel: Color steel sheet (PVDF finish) |
|
Natural lighting roof：FRP |
|
Shipping: 45 working days after designing drawings are confirmed with signature |
|
Installation: Supply supervision |
|
Packaging Details: Use packing rack for large steel components, small components are putted into wooden case. |
|
Design life: 50 years |
