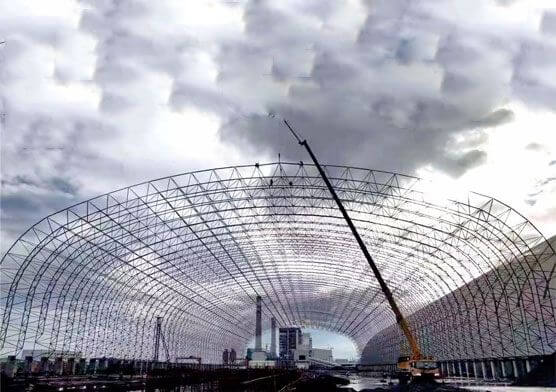

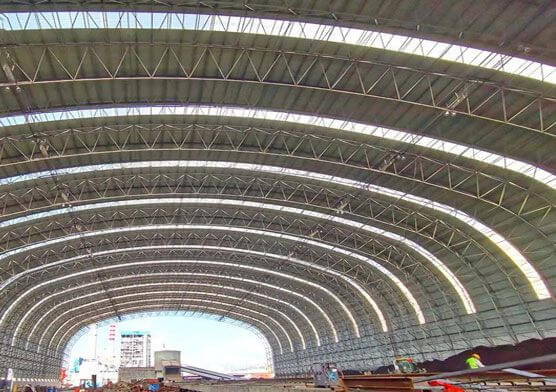

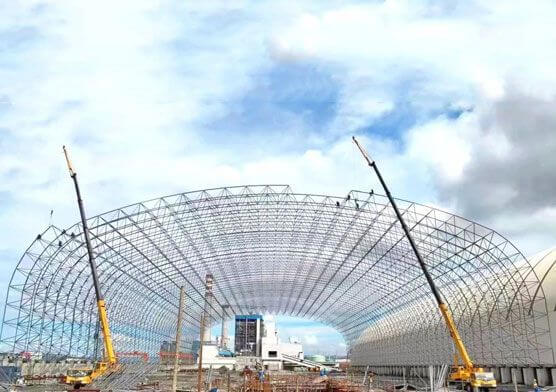

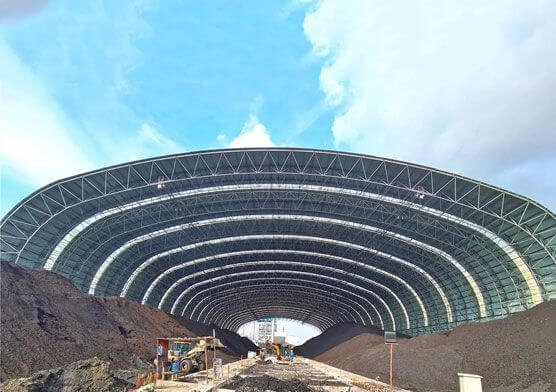

Large Span Steel Structure Arch Building Dry Coal Storage Shed Construction Of 5# Thermal Power Plant

Product description

1. The large span steel structure arch building dry coal storage shed construction of 5# thermal power plant project is located in editable Industrial Park, Indonesia

2. The axis area of the project is 23450 m², the span is 93.8 meters, the length is 250 meters, and the elevation from the center of the support ball to the top of the space frame is 33 meters.

3. The space frame structure of the square cone bolt ball joint is adopted.

leave message

lnquiry online

Technical Advantages
Application
Related Products

Technical Advantages

The space frame coal warehouse roof span of this project is large and there are two expansion joints, so the construction is difficult. To this end, the company has set up a project leading group to comprehensively manage the technology, production and processing, transportation, installation, safety, and quality of the project, as well as the cooperation with the owner, design unit, supervision unit, etc., so as to ensure the project production and installation tasks. Completed successfully and met all requirements of Party A.
