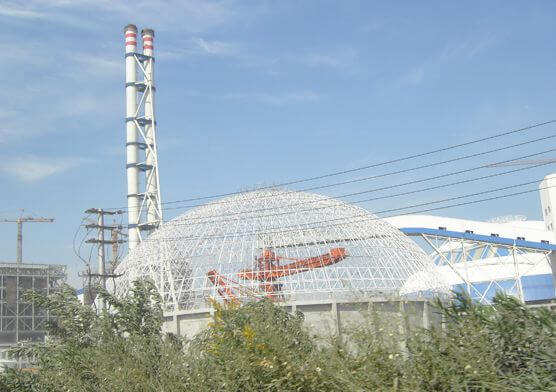

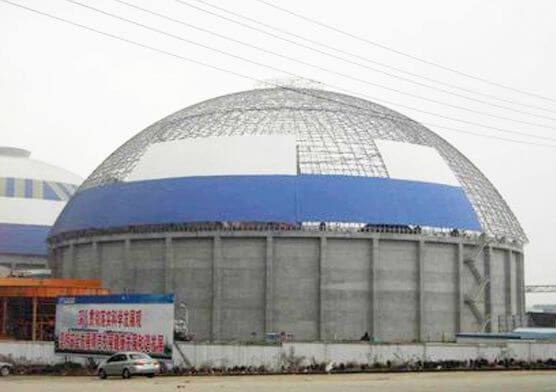

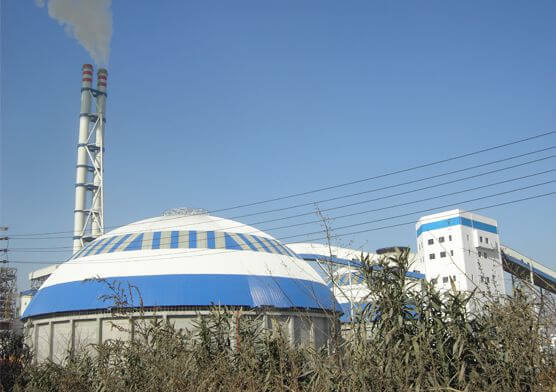

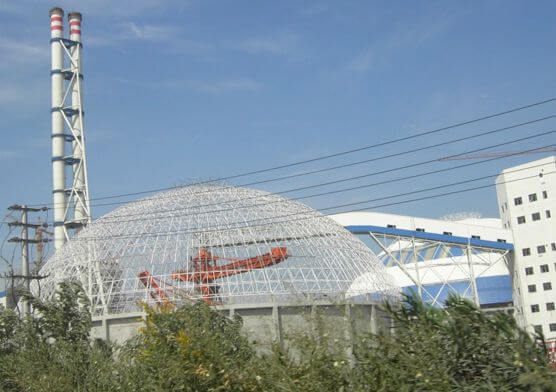

Nanjing Jinling Power Plant Dome Coal Storage request a space structure with large span, we apply high-altitude cantilever installation construction technology on mini-crane on the installation of the dome;firstly we assembly the part space frame into some small units on the ground,then process the connection of nodes by high-altitude workers and carry on the space of whole full joint displacement; the construction method make the whole process economical,practical,convenient efficient and less safety issue.
Basing on the advanced industrial technology and proper construction process, here’s no scaffold and support unit needed for construction,no affects on the center column and stacker,it also make the coal storage and the stack can be processed at the same time,which have big significance in saving cost and construction technology.
|
Structure Type: Light Steel |
|
Application: Coal Storage Shed |
|
Storage Capacity： 170,000t *2 |
|
Span：112.2m |
|
Height：68.28m |
|
Foundation Height：17.5m |
|
Wind Load：0.45KN/m2 |
|
Snow Load：0.65KN/m2 |
|
Seismic Acceleration ：0.10g |
|
Certificates: ISO, CE, SGS |
|
Steel Material: Q355B |
|
Surface Treatment: Hot-dip galvanization (or zinc spray) |
|
Roof Panel: Color steel sheet (SMP finish) |
|
Natural Lighting roof：FRP |
|
Shipping: 60 working days after designing drawings are confirmed with signature |
|
Installation: Supply supervision |
|
Packaging Details: Use packing rack for large steel components, small components are putted into wooden case. |
|
Design Life: 50 years |
