Fangte animation theme park A08 (prehistoric era) steel structure project

Product description

Fangte Animation Theme Park A08 (prehistoric era) steel structure project
1. The roof space frame structure of the venue is a combination of pipe truss and bolted ball space frame;
2. The projected area of the roof space frame in the main hall of the animation venue is 1900 m².
3. The height of the central part of the space frame is 4 meters, the cornice is 3 meters, the height of the lower chord equipment platform of the space frame is 2.76 meters, and the total design weight of the space frame is 162 tons, which is divided into three layers.

leave message

lnquiry online

Technical Advantages
Application
Related Products

Technical Advantages

Steel structure installation

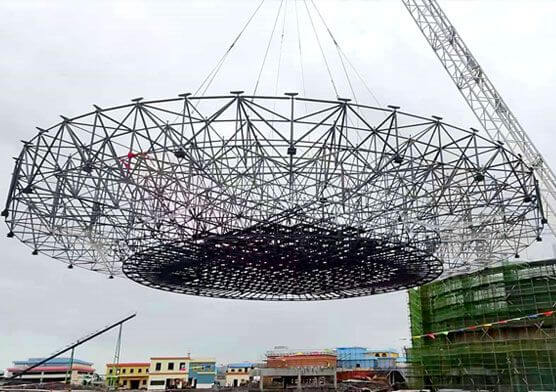

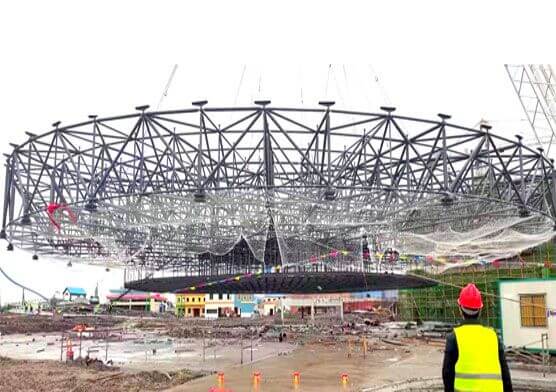

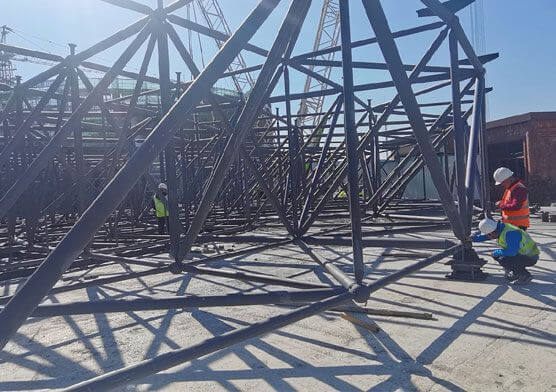

Due to the tight construction period and the lack of bulk on-site, it needs to be assembled and welded outside the venue and then hoisted as a whole. To lift such a heavy steel roof, a 650-ton crawler crane needs to be used for operation. The most enormous crawler crane is only 450 tons. After many contacts, the equipment was specially transferred from other places for on-site assembly, and finally this “hard bone” was gnawed.

In order to ensure the safety of construction, the layout and calculation of the overall hoisting point, the selection of wire ropes, the wind force during hoisting, and other conditions must be subject to strict requirements and calculations to ensure the smooth completion of the project.
