Space Frame Construction Dry Coal Shed for 3×135MW Coal-fired Power Station in Philippines

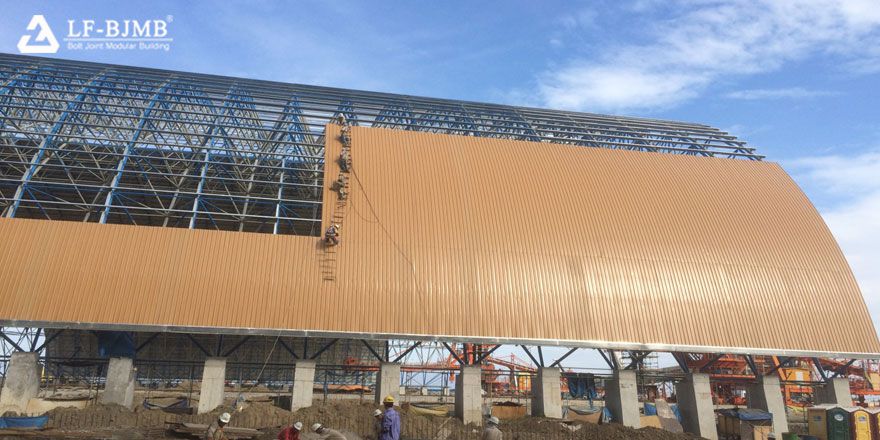

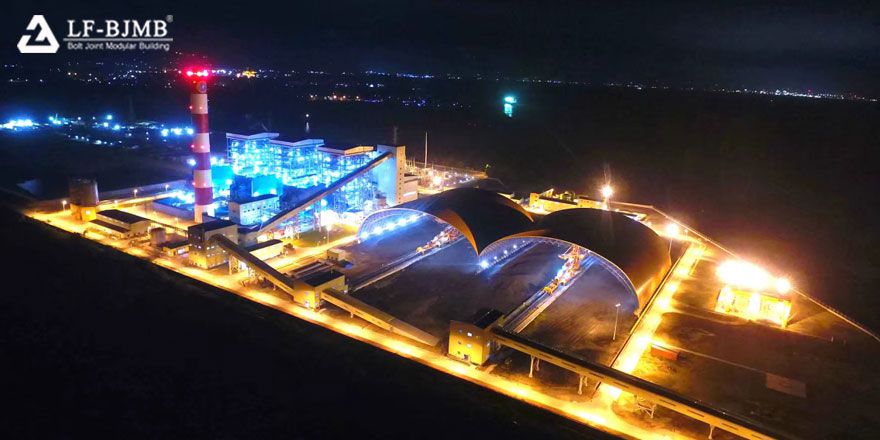

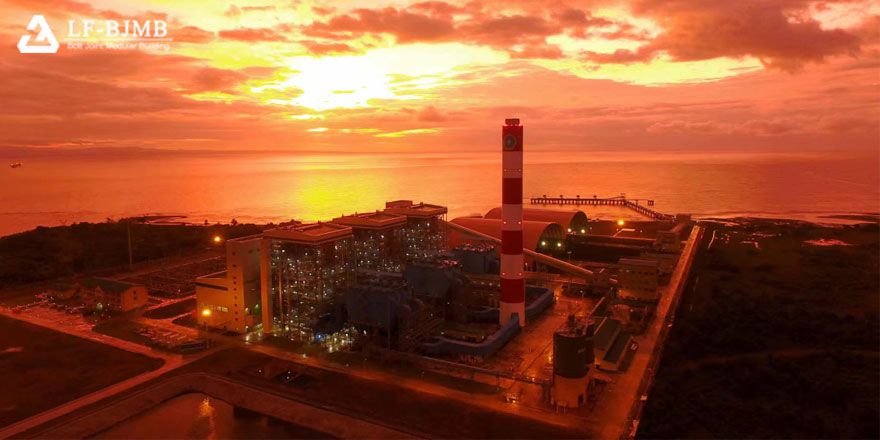

This project is the space frame construction of the dry coal shed of the 3×135MW coal-fired power station in Mesames, Philippines.

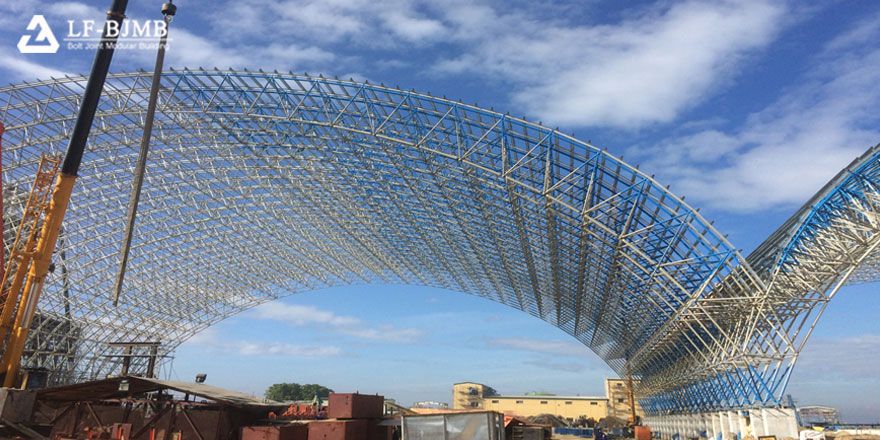

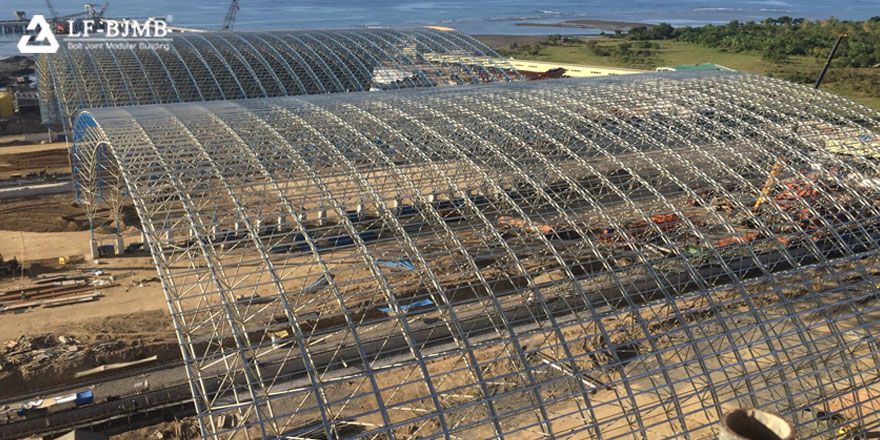

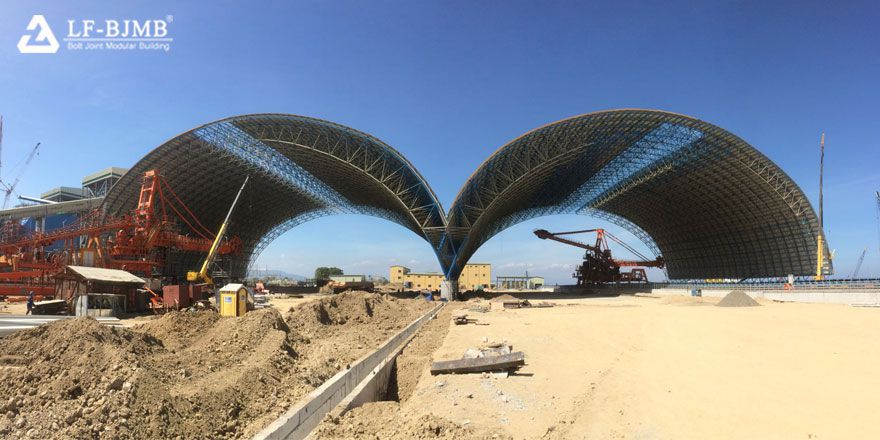

The project is located in the PHIVIDC industrial zone in the eastern Missamis province, Mindanao, Philippines. barrel shell storage span 100m, horizontal projection area about 19256.5m2, barrel shell length 95m, net shell thickness 3.529m, support spherical center elevation +2.40m, space frame top spherical center +33.800m, lower chord supported on concrete column the structure of the square pyramid cone shell is placed in a straight way.

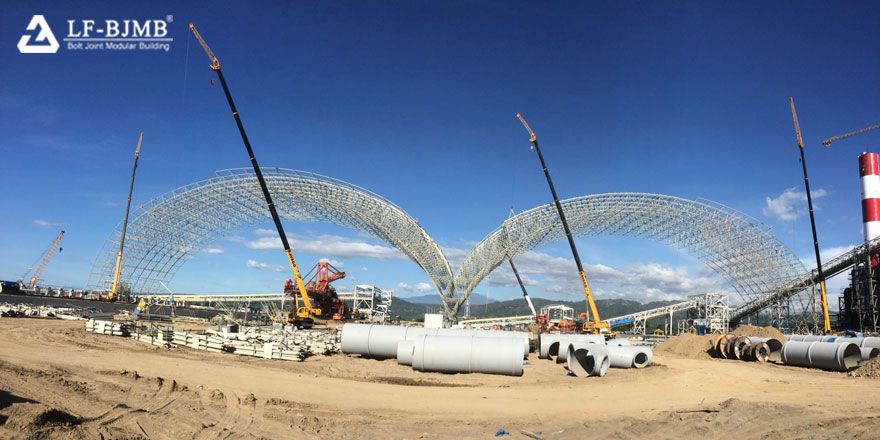

The joints use bolted ball joints. The construction method adopted in this project is: the construction of the car crane is divided into blocks, and the unit cone is installed in bulk at high altitude.
